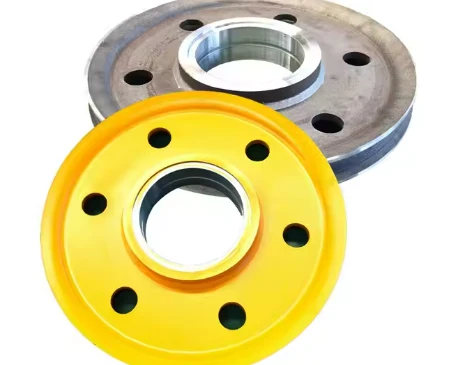

Hnyav-Lub Luag Haujlwm Ob Chav Flange Crane Log Teeb (Forged & Hardened)
Precision Forged. Siab tawv. Ua kom kawg. Paub qhov txawv ntawm qhov tseeb raug tswj. Peb Ob Chav Flange Crane Wheel Sets yog tsim los txuas qhov sib txawv ntawm cov khoom hnyav thiab kev ua haujlwm du. Tsis zoo li cov txheej txheem kev lag luam, peb saib xyuas tag nrho cov khoom siv lub neej-los ntawm cov khoom nyoos forged dawb paug mus rau qhov kawg precision-machined los ua ke. Featuring lub siab -frequency quenched tread (HRC 45-55) rau superior hnav tsis kam thiab ib tug ductile core rau poob siab absorbing, cov log no yog qhov zoo tshaj plaws upgrade rau overhead cranes (EOT) thiab gantry cranes (RMG) ua hauj lwm nyob rau hauv xav tau ib puag ncig.
- Khoom Taw qhia
1. Kev ntseeg ruaj khov: Forging vs. Casting
Vim li cas lub log tsis ua haujlwm? Feem ntau vim muaj qhov porosity hauv cov hlau cam. Peb siv txoj kev sib txawv. Peb lub log yog tsim los sivKaw-Die Forging technology. Cov txheej txheem no compresses cov hlau alloy (feem ntau 42CrMo), aligning cov hlau lis ntws mus rau cov duab ntawm lub log. Qhov tshwm sim yog ib qho kev tivthaiv uas tiv taus kev qaug zog tawg thiab cuam tshuam, ua rau nws muaj kev nyab xeeb dua rau kev lag luam hnyav.
2. Kev tshawb fawb ntawm "Dub Tread"
Koj yuav pom cov xim dub txawv ntawm lub log khiav. Qhov no yog qhov pom kev pov thawj ntawm pebInduction hardening kho.
Hnav Resistance:Peb sov- kho cov npoo kom ua tiav qhov tawv tawv ntawmHRC 50+, tsim kom muaj kev tiv thaiv zoo tiv thaiv kev sib txhuam tsis tu ncua.
Impact Absorption:Tseem ceeb heev, peb tswj lub hardening qhov tob rau15-20 hli. Qhov no ua kom ntseeg tau tias thaum lub ntsej muag nyuaj, cov tub ntxhais sab hauv tseem nyob twj ywm, tiv thaiv lub log los ntawm kev tawg hauv qhov kev poob siab tam sim ntawd.
3. Precision haum & kev koom ua ke
Cov log tsis sib haum ua rau cov tsheb sib tsoo. Peb ob - flange profiles yog machined kom paub meej ISO kam rau ua kom tiv thaivtaug kev puasthiab "nce toj." Peb muab ob hom khoom siv:
Component nkaus xwb:Standalone forged log kom haum koj cov ncej uas twb muaj lawm.
Turnkey Modules:Ua kom tiav kaum tsev thaiv cov rooj sib txoos, ua ntej- haum nrog siab-load kheej kheej cov menyuam bearings thiab precision- hauv av ncej, npaj rau tam sim ntawd ntsia liaj qhov rooj- ntawm kev teeb tsa.
4. Daim Ntawv Teev Npe
| Technical Parameter | Specification Standard |
| Cov khoom siv tseem ceeb | Siab -Qib Alloy Steel (42CrMo / 65Mn / CL60) |
| Nto Hardness | HRC 45-55 (Induction Hardened Zone) |
| Hardened Qhov tob | Qhov tob zoo Ntau dua lossis sib npaug li 15mm |
| Machining kam rau ua | ISO h6 / h7 precision cov qauv |
| Muaj Qhov Loj | Ø250mm txog Ø1000mm (OEM Dimensions Txais) |
| Testing Protocol | 100% UT (Ultrasonic) & Kev Ntsuas Hardness |
5. Cov ntawv thov tseem ceeb
Kev lag luam hlau:Siab -tsheb thauj mus los.
Chaw nres nkoj Logistics:Nkoj - mus rau -Shore (STS) thiab RMG thawv cranes.
General Manufacturing:Ob chav -girder EOT cranes (Bridge & Trolley mus ncig).
Heavy Automation:Industrial rail -cov tsheb coj (RGV).
